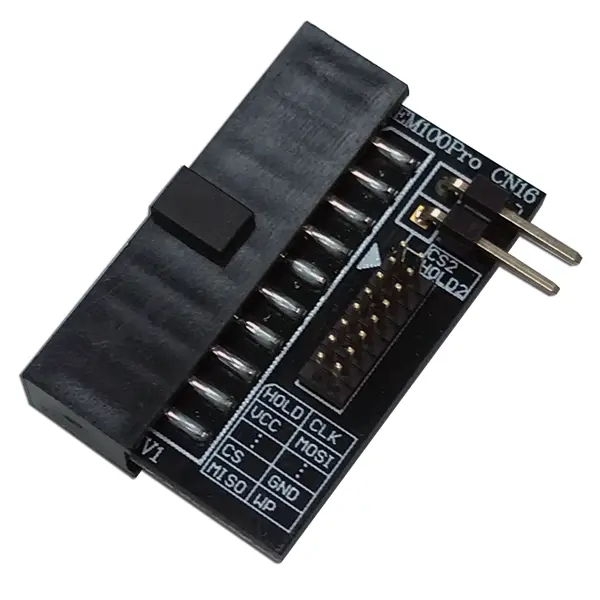

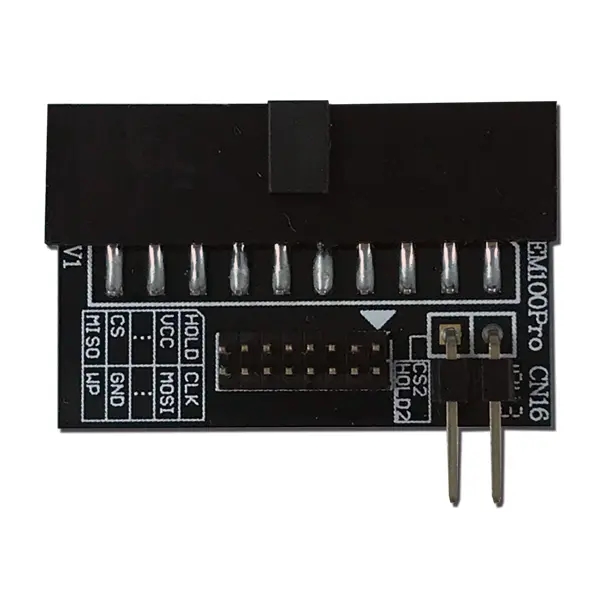

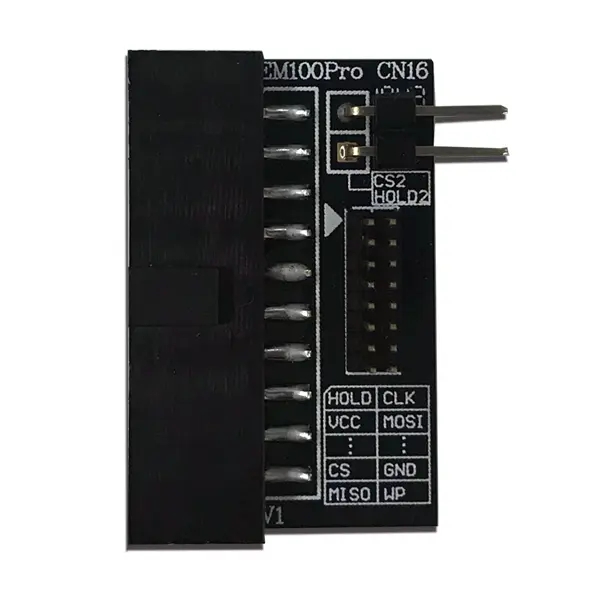

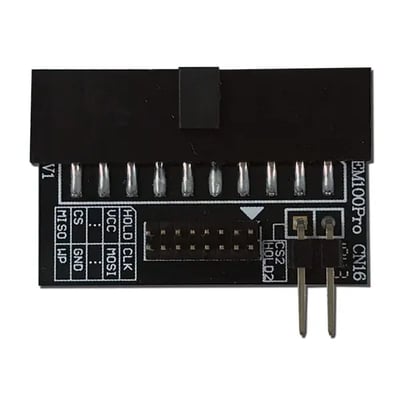

DediProg岱鐠 SO16 1.27mm 2x8 Adaptor

Description

SO16 Connection Adaptor for EM100Pro-G2 or EM100Pro is used to connect EM100Pro-G2 or EM100Pro (2.54mm 2x10) to 1.27mm pin header soldered on the application. In this way, the application can work (boot) from EM100Pro-G2 or EM100Pro directly. Refer to the following pin configuration for SO16 connector on the SO16 Connection Adaptor.

SO16 Connector Pin Out
