首頁商品分類 DediProg岱鐠燒錄器配件 DediProg岱鐠 Pin 2x4 to 2x4 cable 20cm

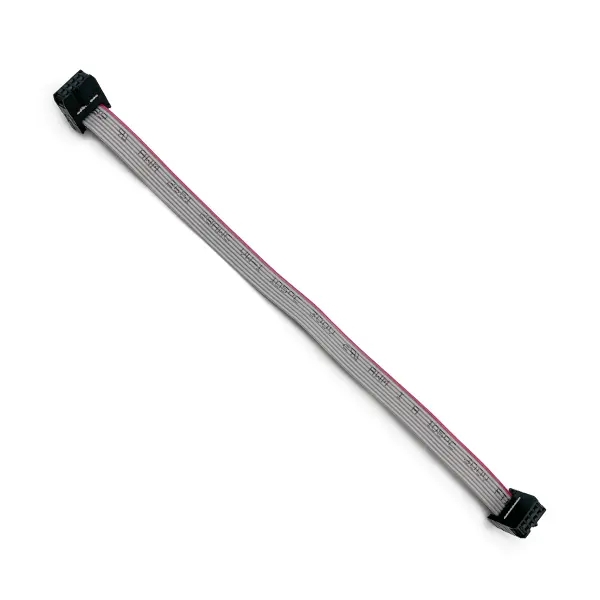

DediProg岱鐠 Pin 2x4 to 2x4 cable 20cm

NT$ 0

MA-IDC3B-N-08F-Z-0200-N-0A
Pin 2x4 to 2x4 cable 20cm

此商品無提供線上購買，如需了解更多，請洽客服專員

商品介紹

Description

The Pin 2x4 to 2x4 cable 20cm cable is used to connect the ISP SF600/SF600Plus/SF600Plus-G2 programmer control port to the 2X4 2.54mm ISP Pin Header to provide Pass/Busy/Fail signals and the Start trigger.

Cable Connector Pin Out

NC	GND
START	3.3V
PASS	FAIL
NC	BUSY
