DediProg岱鐠 NuProgPlus Socket Bottom Board

NT$ 1030

SF600PG2-ISP-board-NPP

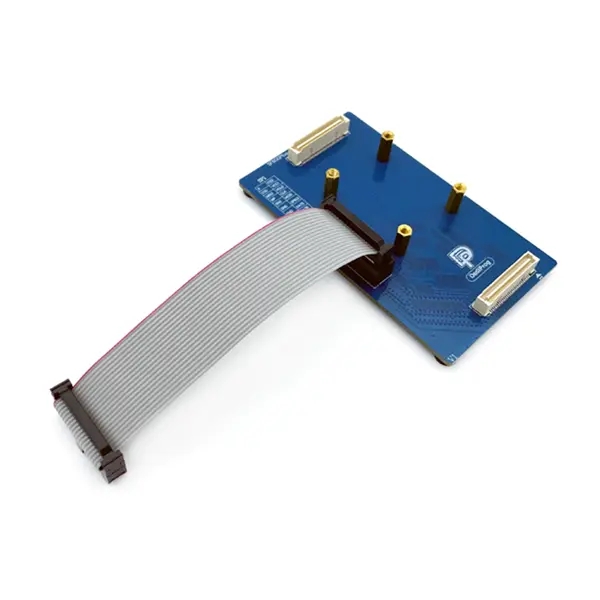

NuProgPlus Socket Bottom Board (SF600/SF600Plus/SF600Plus-G2)

商品介紹

Description

The NuProgPlus Socket Bottom Board is used to operate off-line programming for 25 series SPI flash memories via programmer. User can directly use the Pin 2x10 to 2x10 Cable to connect the NuProgPlus Socket Bottom board and the programmer.

Bottom Board Pin Out

SPI
NC	CS2
CS1	VCC
MISO/DQ1	HOLD/DQ3
WP/DQ2	CLK
GND	MOSI/DQ0
NC	RESET/IO3
GND	IO5/DQ5
BufVCC	IO6/DQ6
IO7/DQ7	IO4/DQ4
IO1	IO2

商品評價

此商品暫無評價

DediProg岱鐠 NuProgPlus Socket Bottom Board

Description

商品評價

你可能會喜歡

DediProg岱鐠 SF600 ISP Cable

DediProg岱鐠 ISP adaptor for SPI (Pin compatible with SF100)

DediProg岱鐠 SO8 DIP Cable

DediProg岱鐠可換插頭變壓器

DediProg岱鐠 Intel ISP Adaptor-A2(mated with SF100)

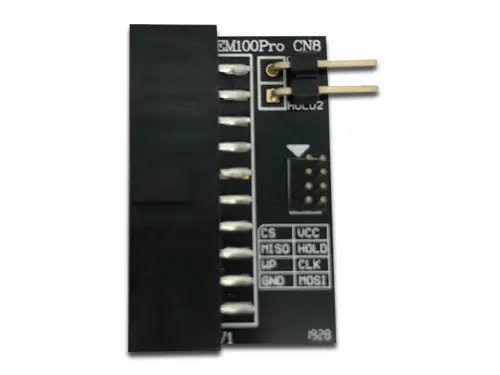

DediProg岱鐠 SO8 1.27mm 2x4 Adaptor
