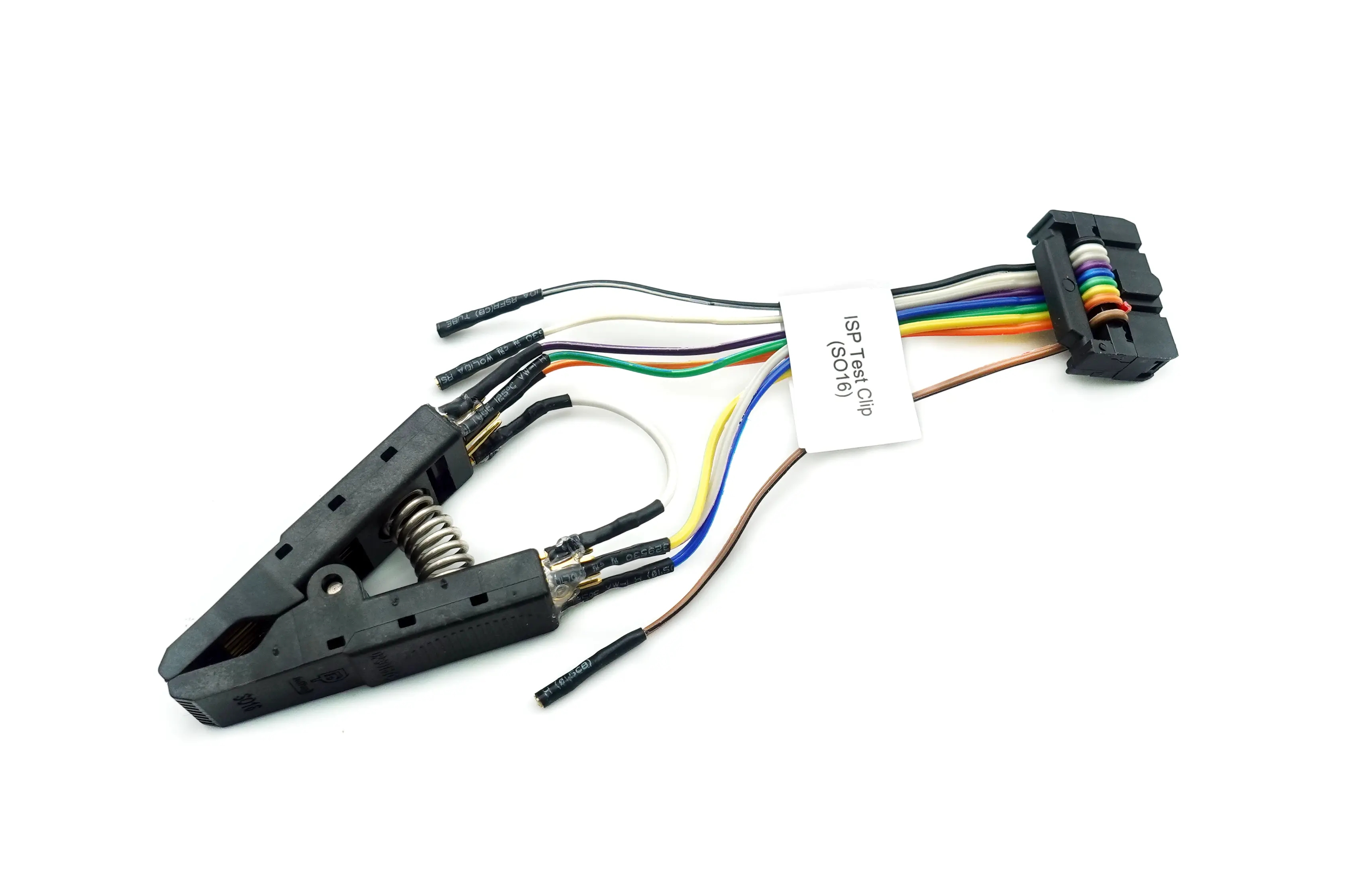

DediProg岱鐠 ISP Testclip (SO16W 300mil) (Compatible with SF100)

Description

The ISP Test Clip-SO16W is used to connect the ISP SF100 programmer to the Main Serial Flash soldered on board offering the possibility to update directly the SPI Flash content if no ISP connector is mounted on board. The ISP updating method must only be used if supported by your application or controller.

• Compatible with SO16W (300 mils) package
• System can be reset automatically during the update by connecting the additional wire to the System reset signal.
